TABLE TENNIS TABLE INSTALLATION HELP LINK

Please follow the steps below:

Step 1: Screw the 4 × B1 bolts into the pre-drilled holes.

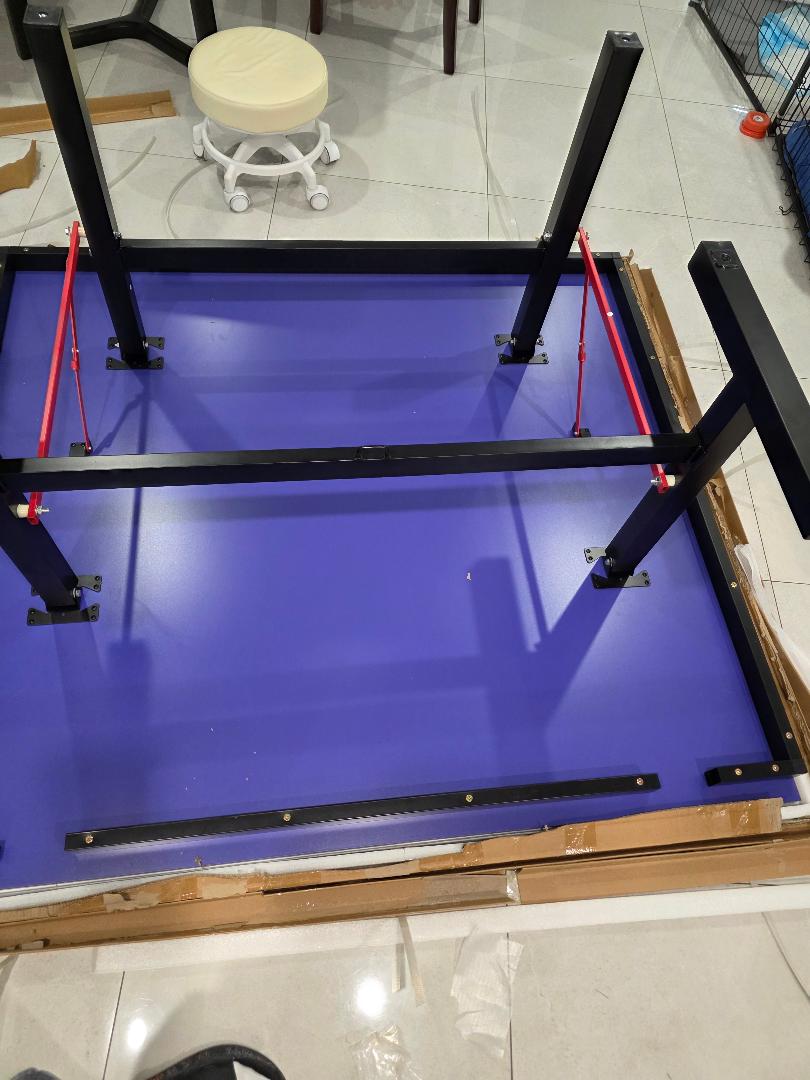

Step 2: Install the 4 legs (2 × C8 and 2 × C6) onto the B1 bolts respectively.

Step 3: Install the crossbars (C7 and C9) between the corresponding legs.

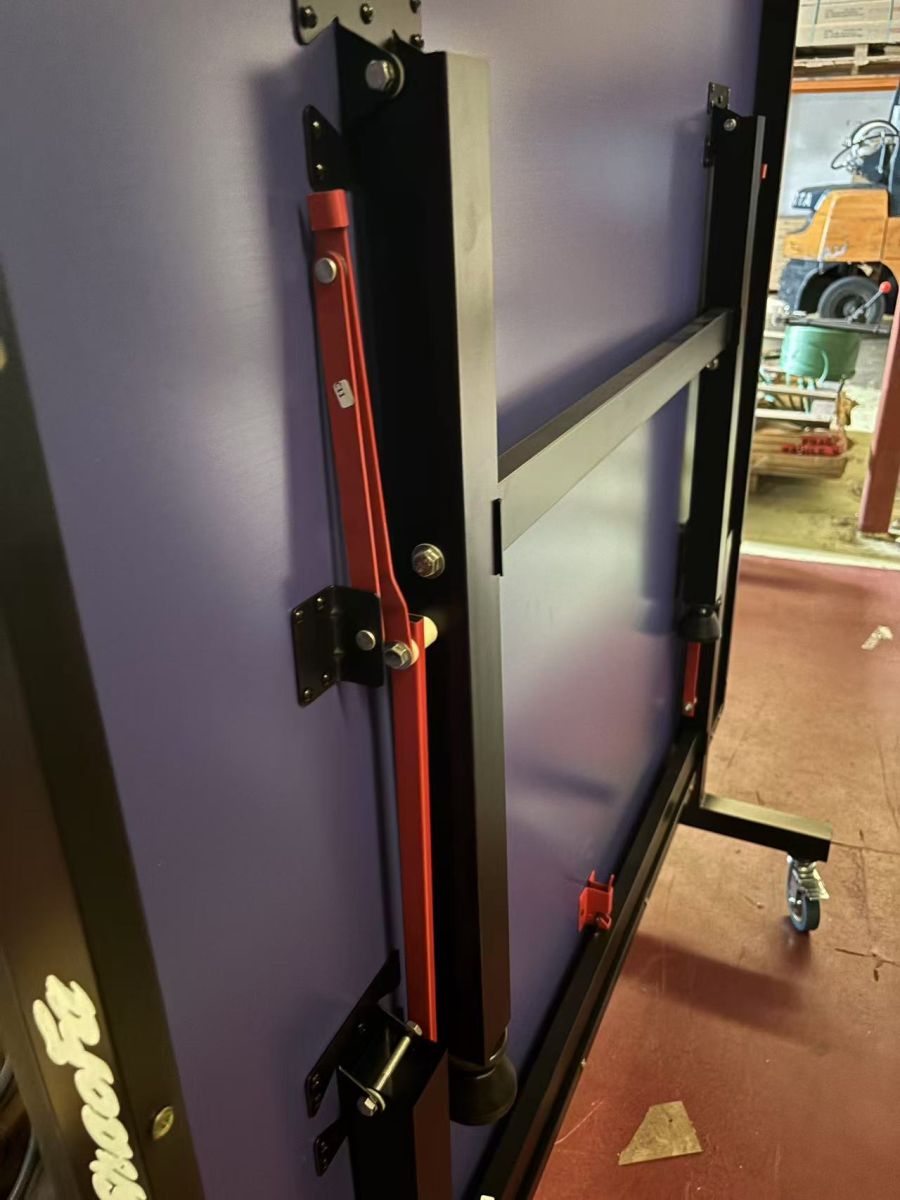

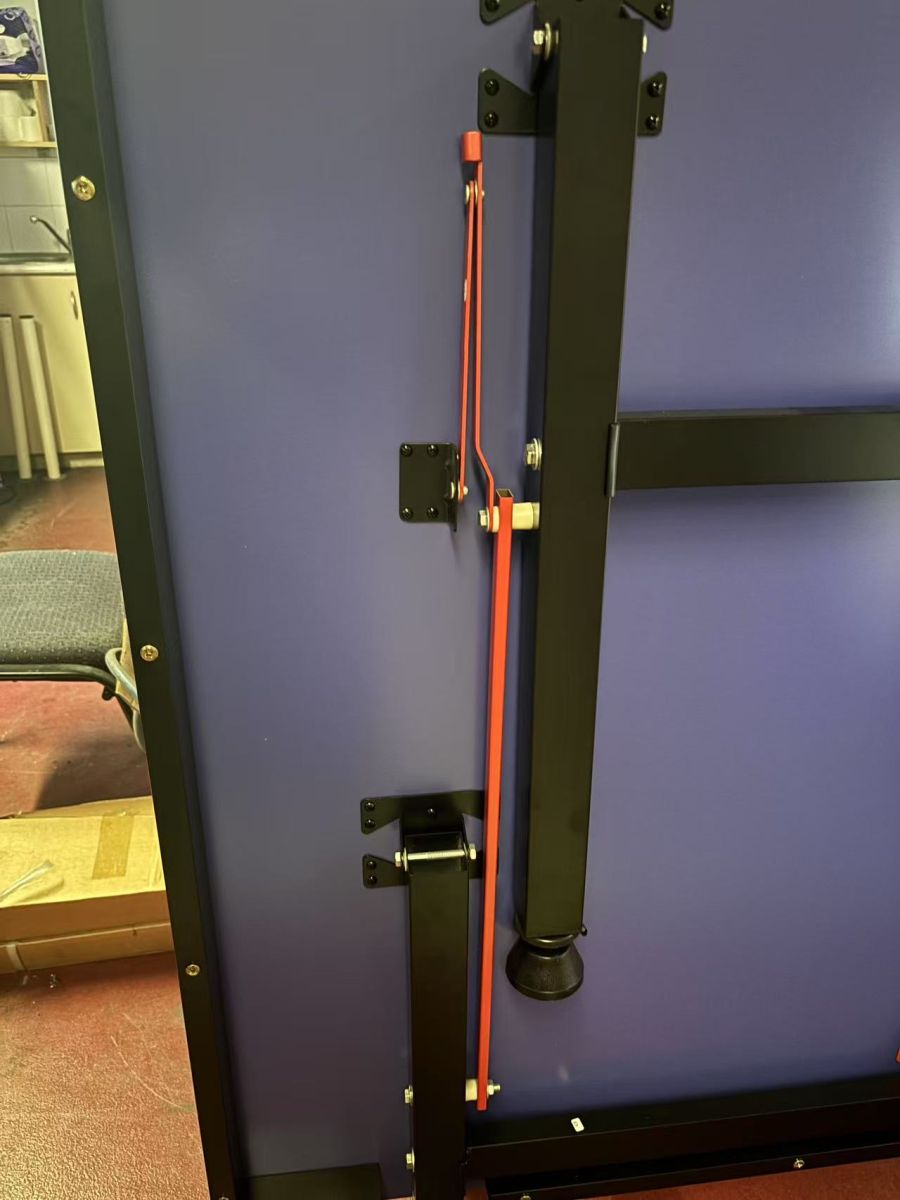

Step 4: Install the red folding bars (C11 and C12).

There are C11 and C12. They look identical, but their turning angles are different.

There may only one red arm labeled C11 and one labeled C12, but there are two additional red arms that are identical in appearance to C11 and C12.

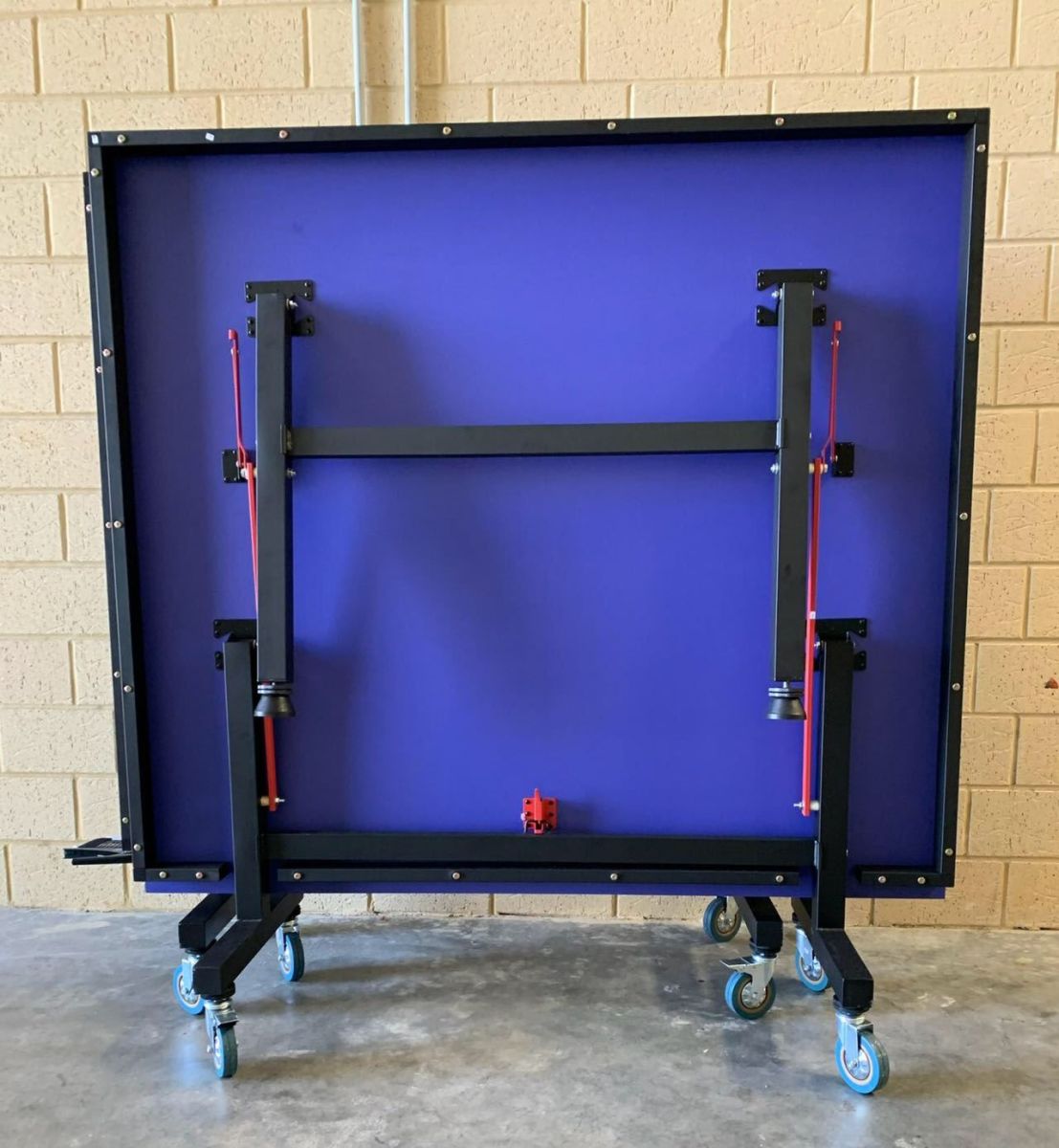

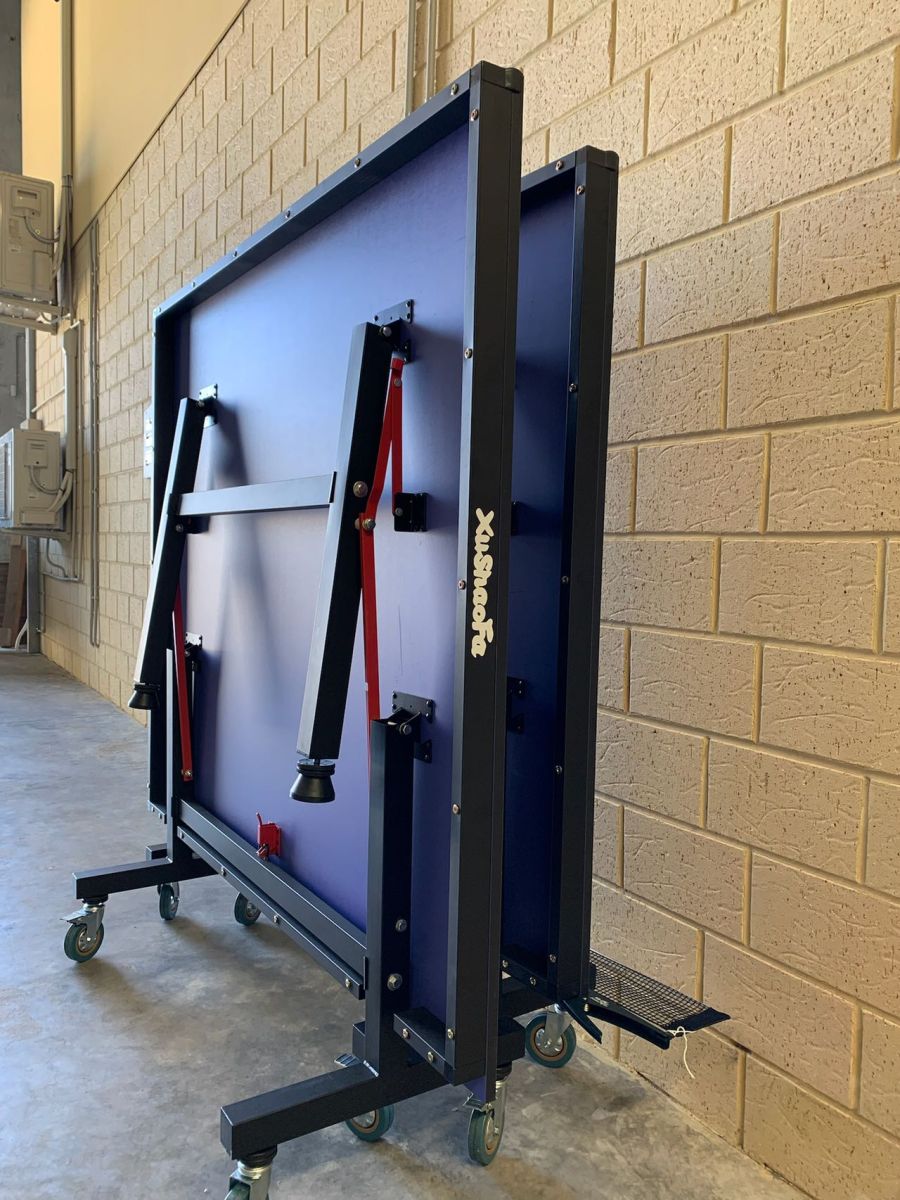

When the table is folded up, the arm labeled C11 is on the left, and the one labeled C12 is on the right.

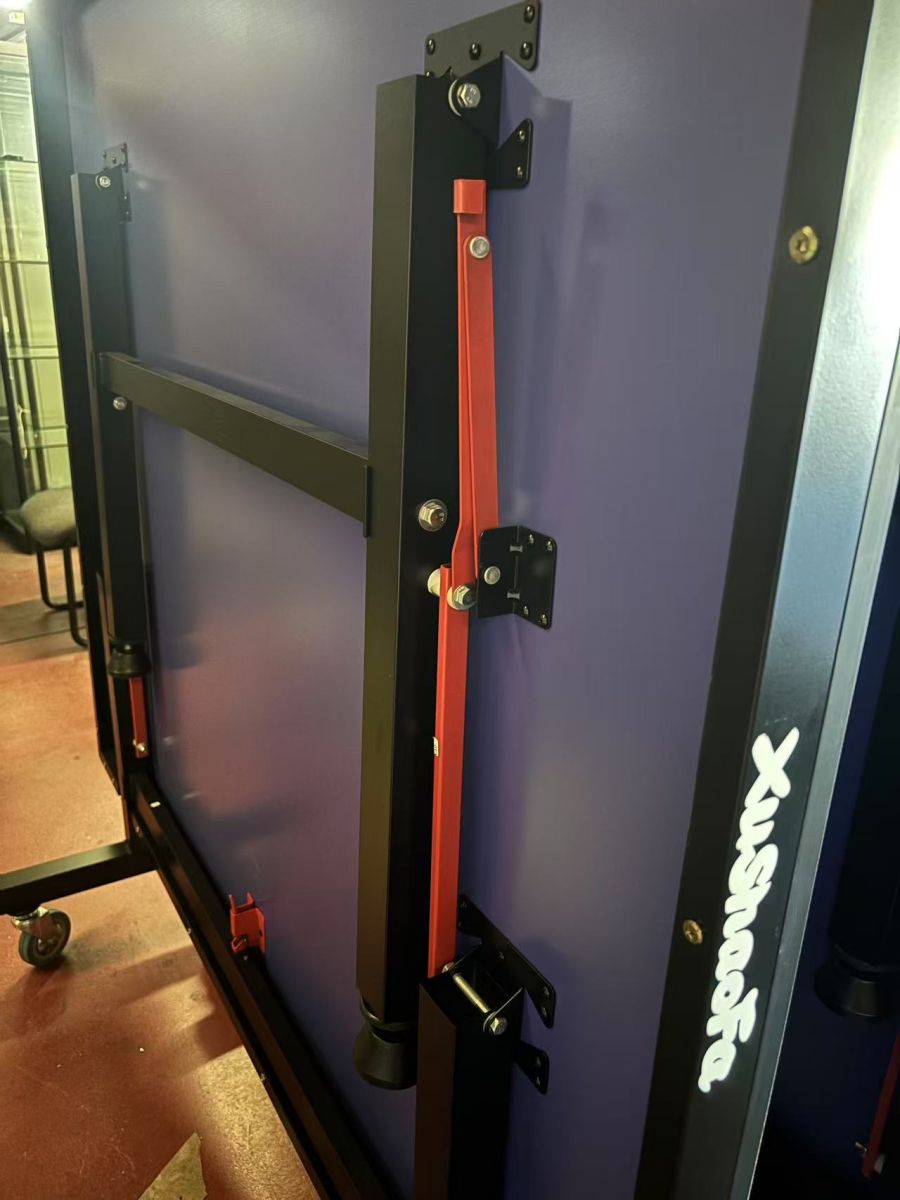

Please refer to the attached photos for clarification.

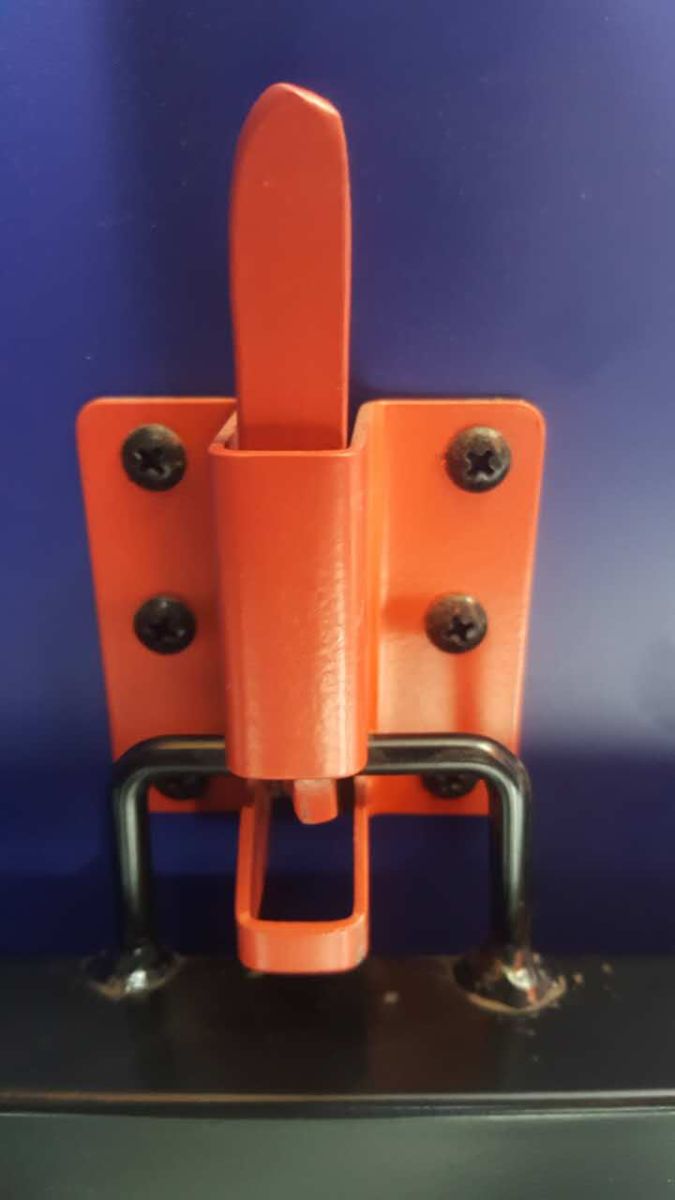

The lock for this table is not pre-drilled, all you have to do is set the rest of the table up and have it in vertical stored position. Place the lock lining up with the latch on the bottom and drill the holes in. This is to make sure the latch can securely lock the table after the whole installation.
